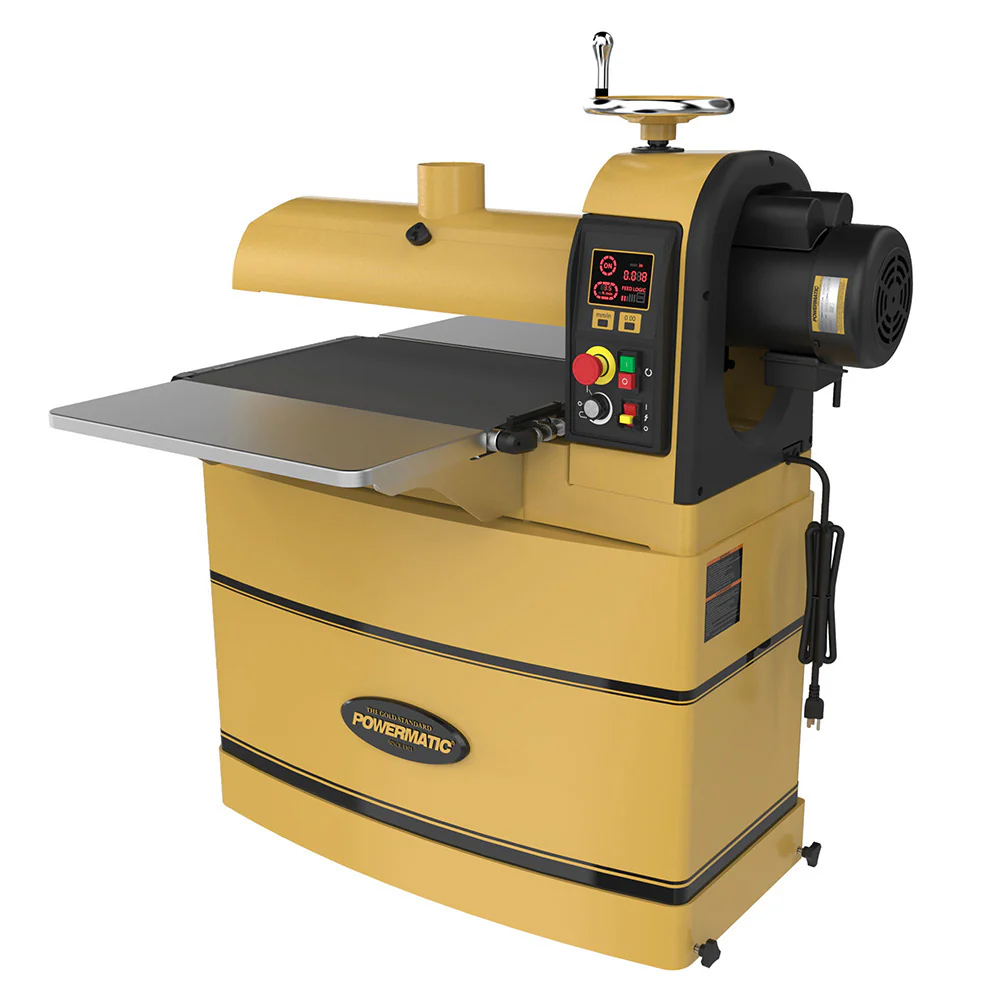

Powermatic PM2244 Drum Sander 1-3/4 HP

The PM2244 will exceed your expectations with its world-class design, usability and sophistication.

• Integrated LED Control Panel shows power, belt speed, and DRO
• Equipped with Feed Logic to produce exceptional finish while preventing machine overload
• Table parallelism is adjusted with a dial on the outside of the conveyor bed, eliminating adjustments to the entire drum carriage
• Secondary, absolute depth scale provides an additional height reading
• Drum carriage is designed to provide strength and consistent performance over time
• Steel hood with a 4" dust port provide excellent dust collection
• Emergency stop for quick shutoff
• Large, chrome handwheel makes adjusting the drum height smooth and simple
• Belt tracking is designed to reduce the need for manual adjustment
• Integrated casters make it easy to move unit around the shop
• Included infeed/outfeed tables proved 37-1/2 inches of support for the workpiece
• Independent feed and drive motors provide exceptional sanding control
• Precision-machined cast iron conveyor bed and no-give power feed belt provide a flat sanding surface for better results
• Sealed and permanently lubricated drum ball bearings for longer life
• Closed stand with storage for keeping abrasives organized
• Drum is removable

Specifications:
Style: Open Stand
Drum Length: 22"
Drum Speed: 1,720 RPM
Drum Diameter: 5"
Conveyor Motor: 1/30 HP
Conveyor Speed: 0 - 10 FPM
Maximum Board Thickness: 4"
Maximum Board Width: 44" (two passes)
Minimum Board Length: 2-3/8"
Minimum Board Thickness: 1/32"
Dust Port Outside Diameter: 4"
Dust Collection Minimum CFM: 800
Motor Power: 1-3/4 HP
Motor Voltage: 115
Motor Amps: 14

Powermatic stock number 1792244
